X-Ray Shielding Sliding Lead Door For Hospital
2022-04-25    /    Browse:381

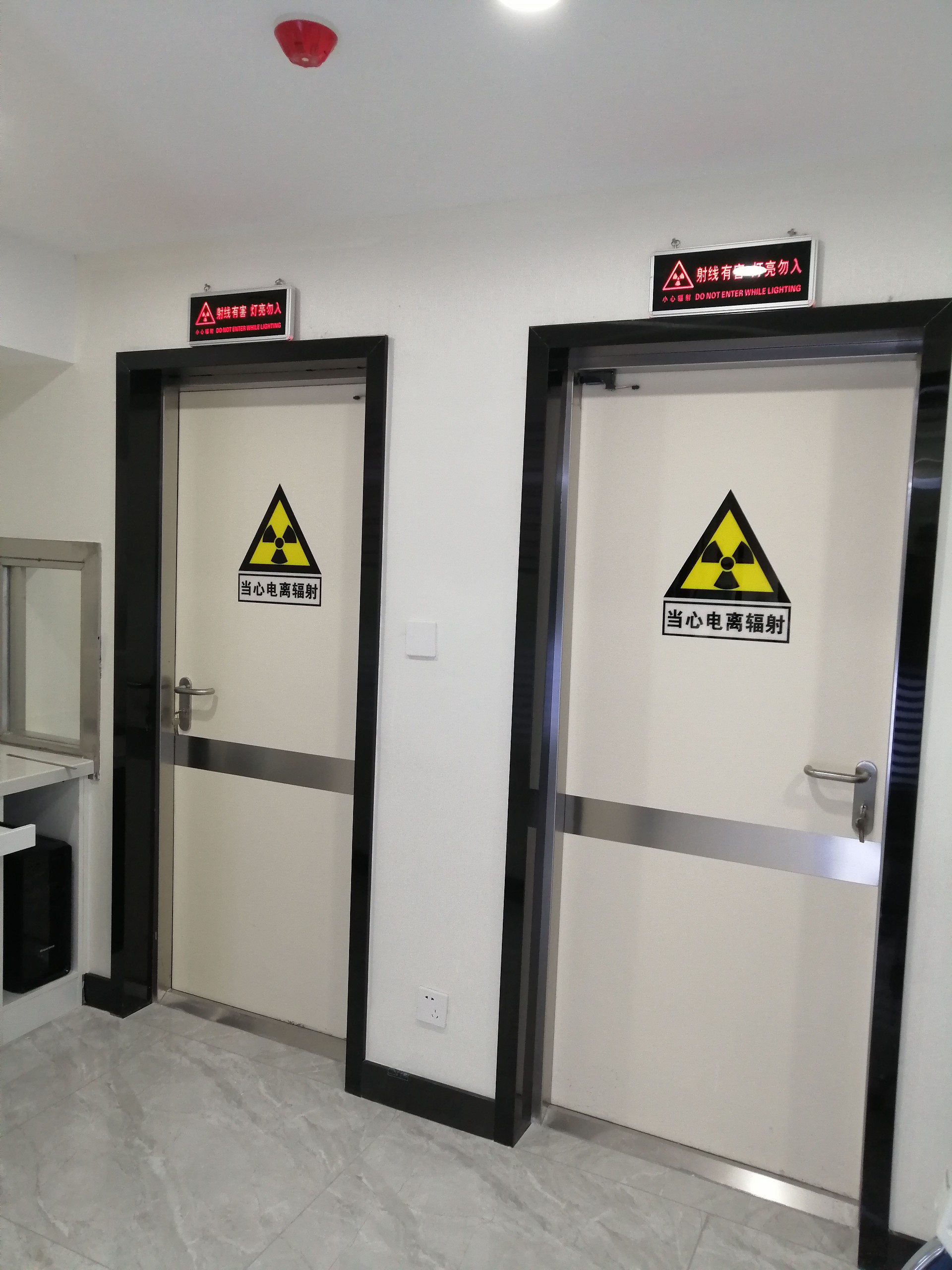

X-ray protection door
1. Size : 1500*2100 or customized
2. Material: Lead sheet (PB), stainless steel, steel structure, MDF board, PU foam, etc.
3. Function: X-Ray protection.
4. Lead sheet thickness: 2mm, 3mm, 4mm, 6mm.
5. Door frame: 1.2mm thickness stainless steel or color painted steel.
6. Door panel construction:
1) Door skin: 0.8mm cold rolled steel/0.8mm stainless steel/1.2mm aluminum plate/HPL board
2) MDF/plywood board: 5mm thickness high quality MDF
3) Steel structure: 1.8mm thickness, 30mmX30mm galvanized steel tube structure + 30mm PU foam/fire rated cotton
4) Lead sheet: 1mm--3mm lead sheet for each side (2mm to 6mm lead sheet total)
Item
Detail
Lead sheet thickness
1mm, 2mm, 3mm, 4mm, 6mm
Lead glass thickness
8mm,12mm,15mm,18mm, 20mm
Door skin material
color painted steel, stainless steel (SUS), aluminum, PVC, fireproof board, etc.
Door frame material
Stainless steel
Knock blade material
stainless steel
Seal material
silica gel, rubber
Door lock & door hinge material
stainless steel
Door size

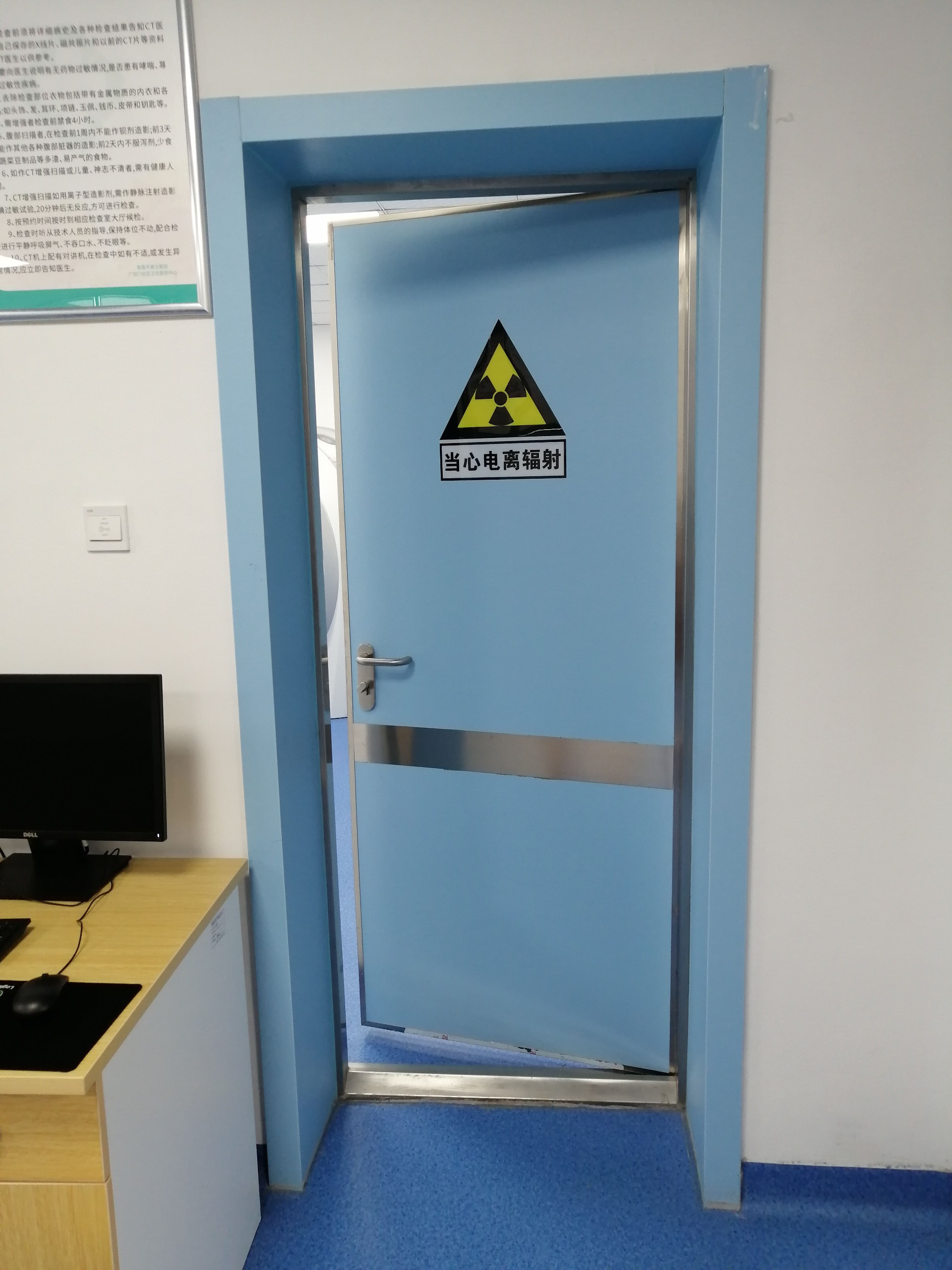

swing door:
single door width: 700mm-1000mm,
picture door width: 1200mm-1400mm,
double door width: 1400mm-1800mm,
door height: 1900mm-3000mm

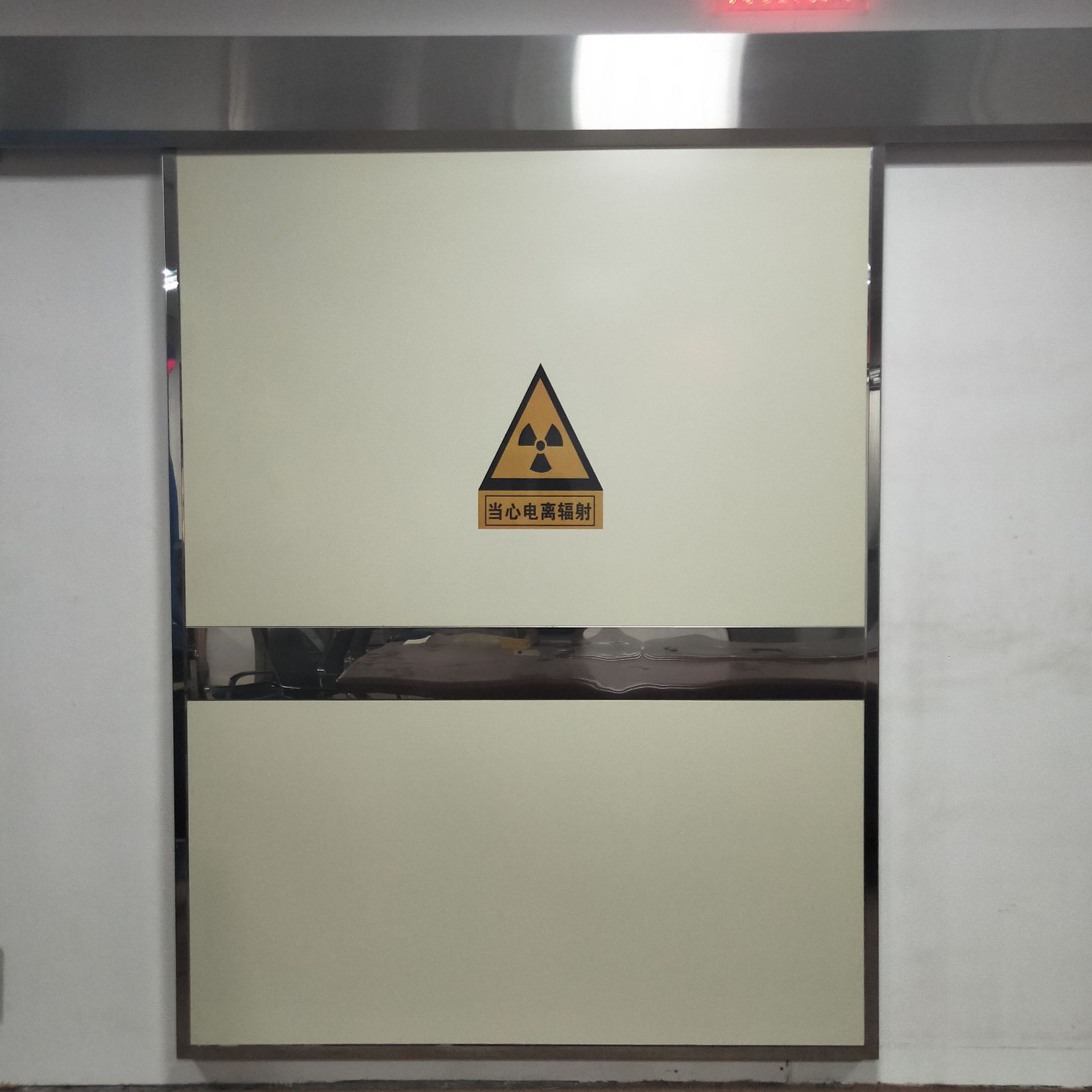

sliding door:

single door width: 1000mm-2200mm,
double door width: 1500mm-3000mm,
door height: 1900mm-3100mm
Door skin color
original SUS color, original aluminum color, light blue, white, grey, beige, etc.
Automatic door system
opening door by hand sensor switch, feet sensor switch or press switch
Optional accessories
1, LED light screen

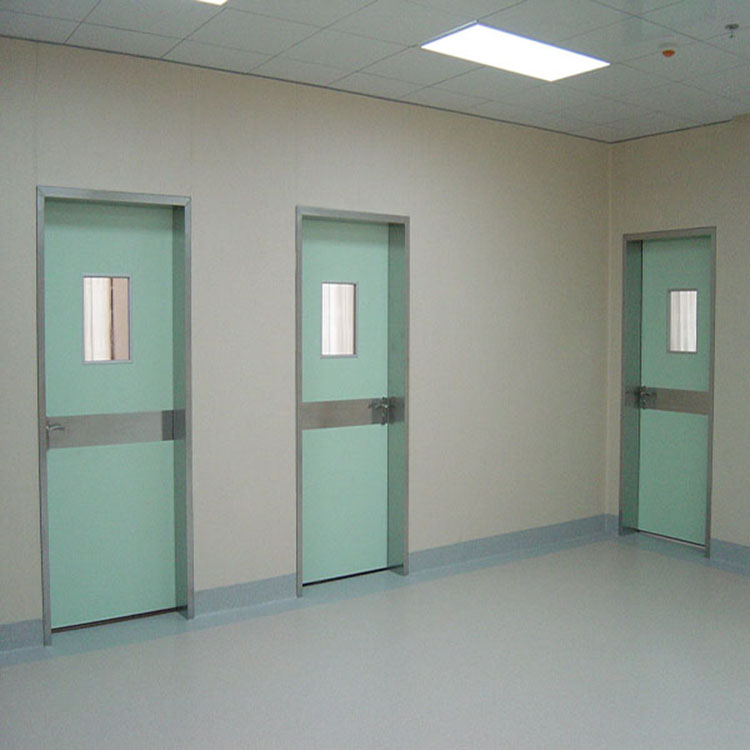

2, Visual window
3, Bottom sinking down seals
